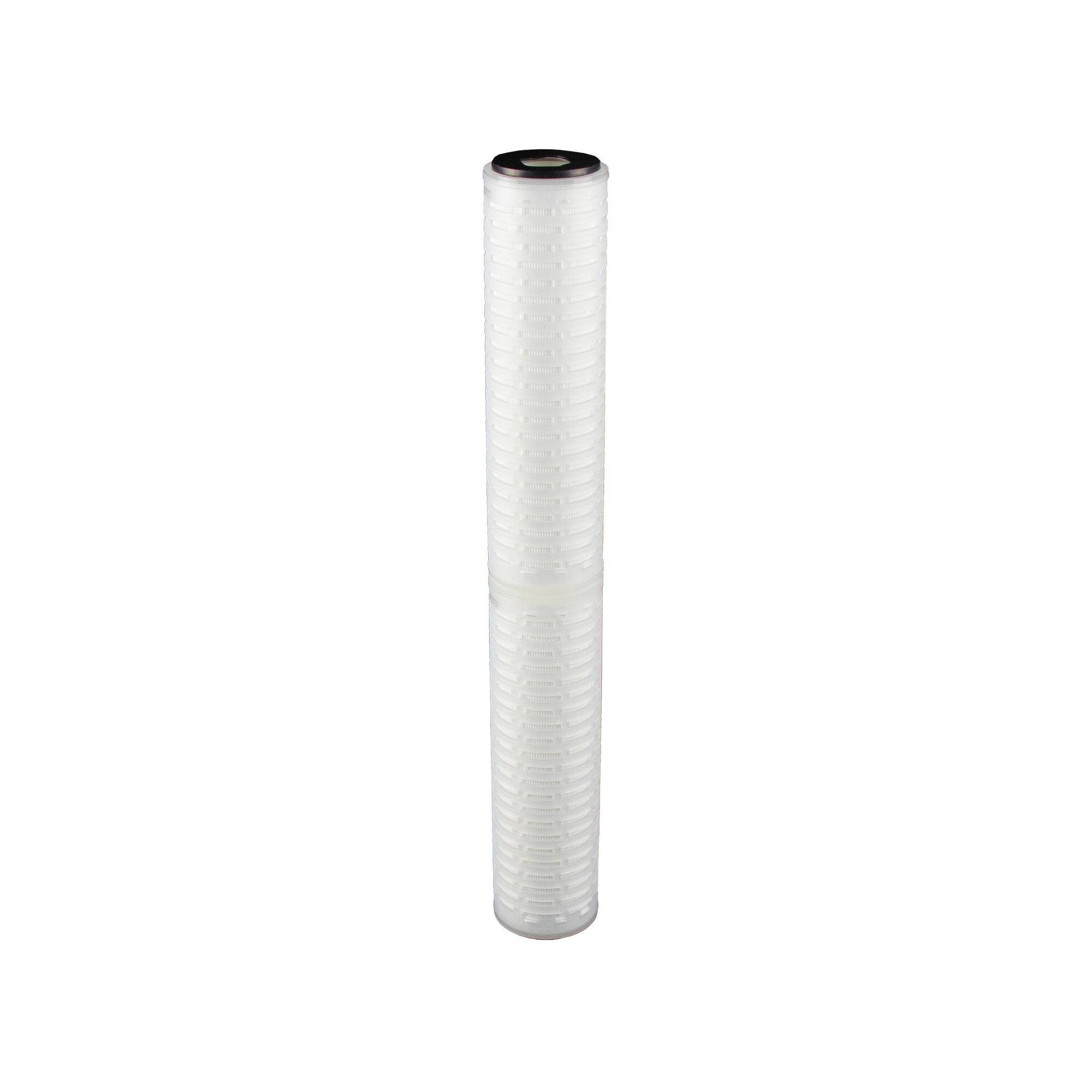

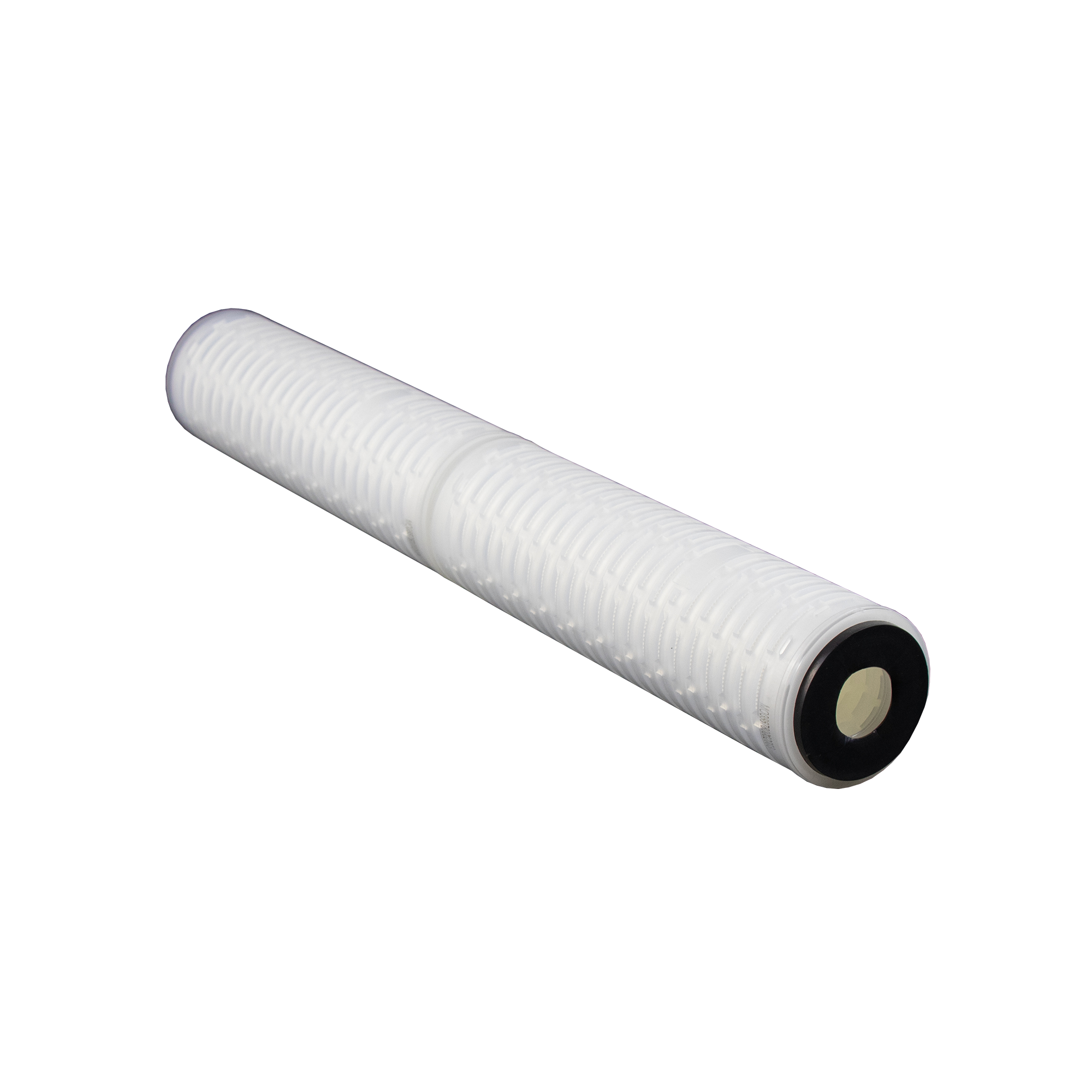

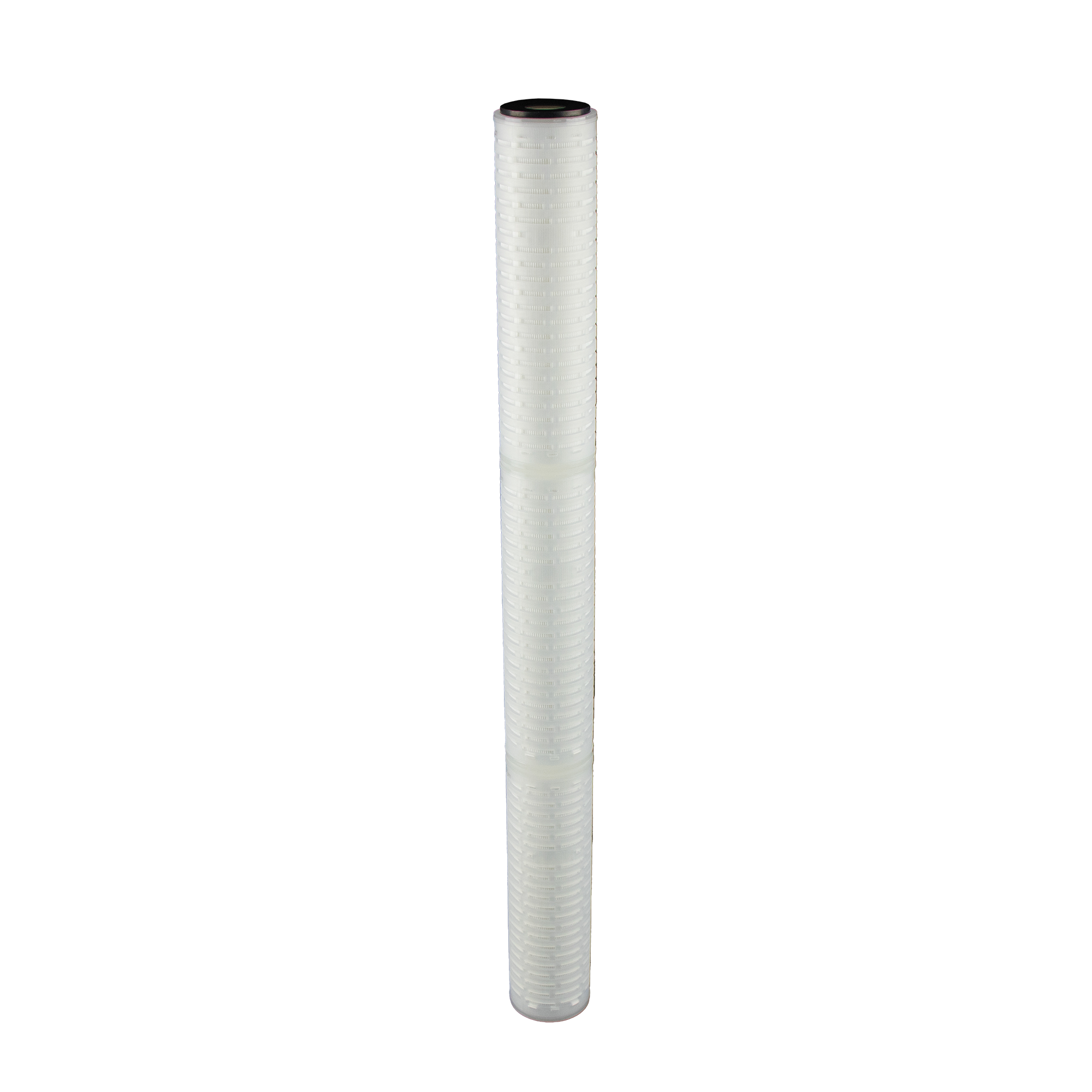

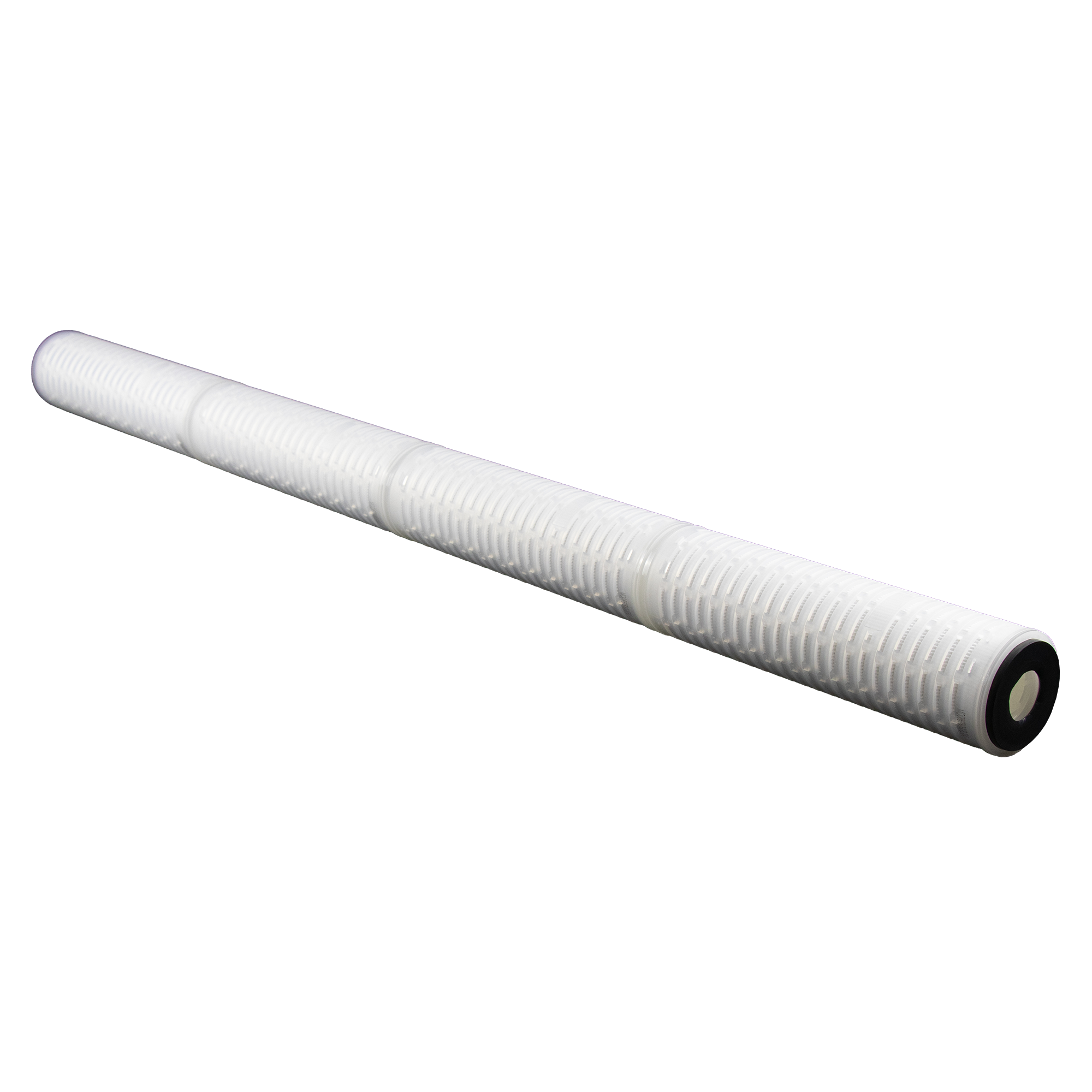

Premier Pleat High Efficiency Polypropylene (PPHP)
- Beta 5000 efficiency 99.98%
- Ultra consistent particle removal
- Four pleated media layers add depth characteristics
- High efficiency and exacting micron classification
- Cage construction for improved flow dynamics and media protection
- Large surface area and low pressure drop
- Medical
- Chemical
- Inks/Coatings
Features & Information
Specifically engineered for applications requiring exceptional filtration performance. While the Premier Pleat Polypropylene (PPP) cartridge achieves a high efficiency of 96-97%, the Premier Pleat High Efficiency Polypropylene (PPHP) cartridge offers a superior beta rating of 5,000, ensuring a remarkable 99.98% removal efficiency for finer particles.
FAQs - PPHP
The SPECTRUM Premier Pleat Polypropylene (PPHP) cartridge offers superior filtration performance compared to other pleated cartridges, with a beta rating of 5,000 for 99.98% removal efficiency of finer particles. Its advanced four-layer pleated media design ensures exceptional rigidity, a large surface area, and low-pressure drop, making it ideal for applications where clean water is critical.
The caged construction delivers improved flow dynamics and is designed to protect the integral pleat pack and provide overall rigidity and strength to the cartridge; as well as allowing a more uniform distribution of flow across the entire pleat pack ensuring low pressure drop and maximised dirt holding capacity and allowing for end caps to be thermally bonded to the cartridge.
A pleated filter is a type of liquid filtration cartridge designed with pleats or folds on the filter media to increase the surface area for better filtration efficiency compared to spuns and wounds.
Pleated filters are used to remove suspended particulate. They are usually used to control finer particulate as a final stage of filtration where a specific contaminant is targeted for removal.
