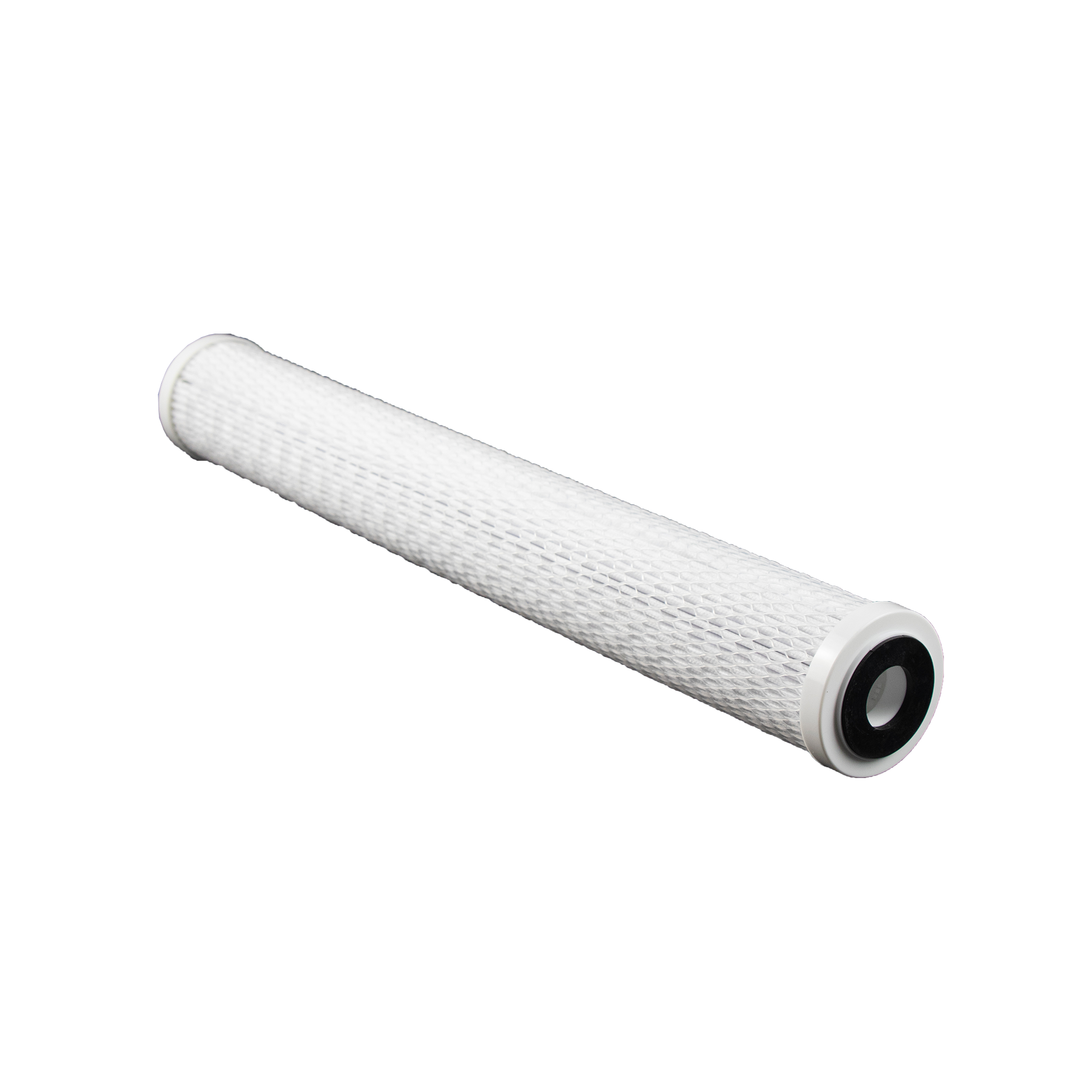

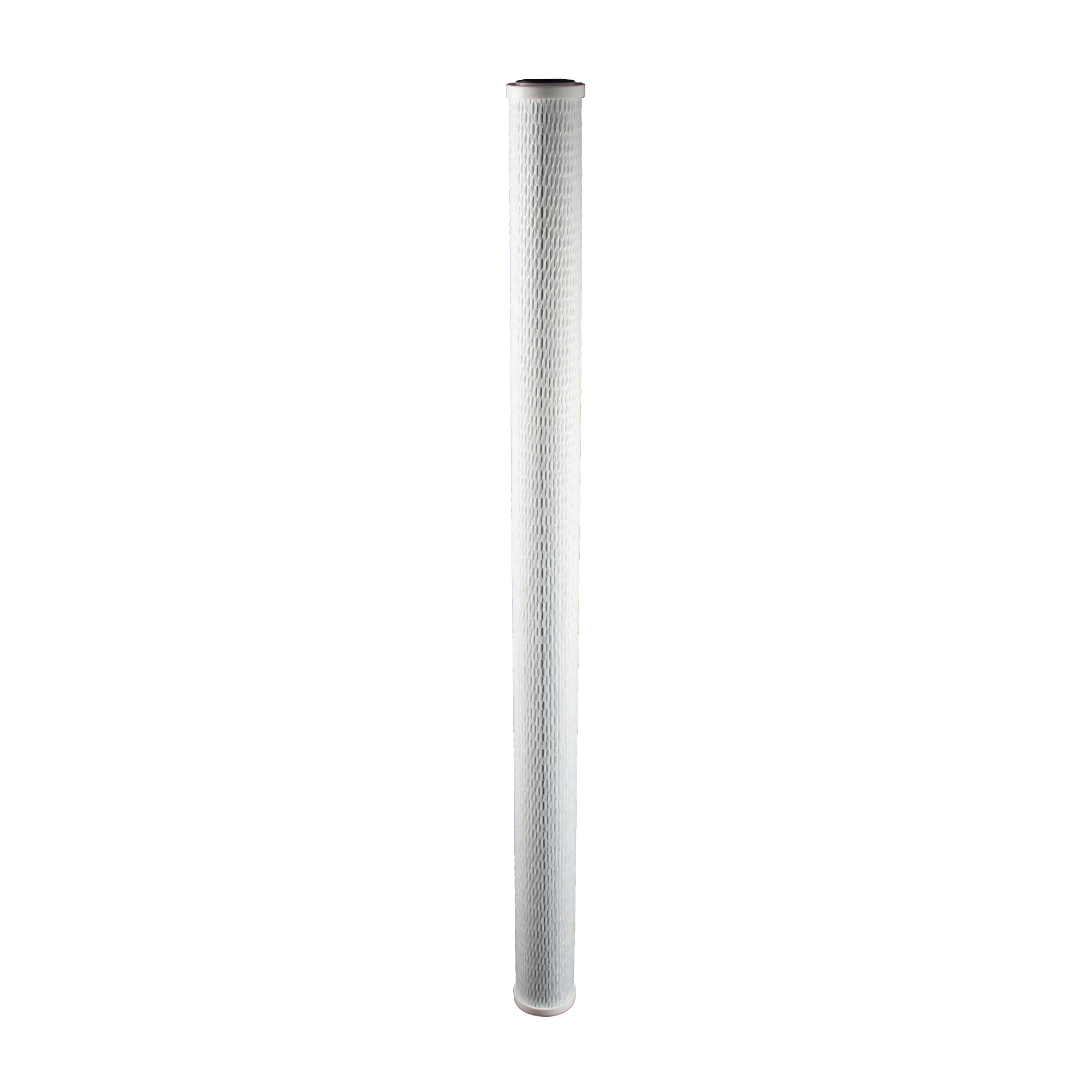

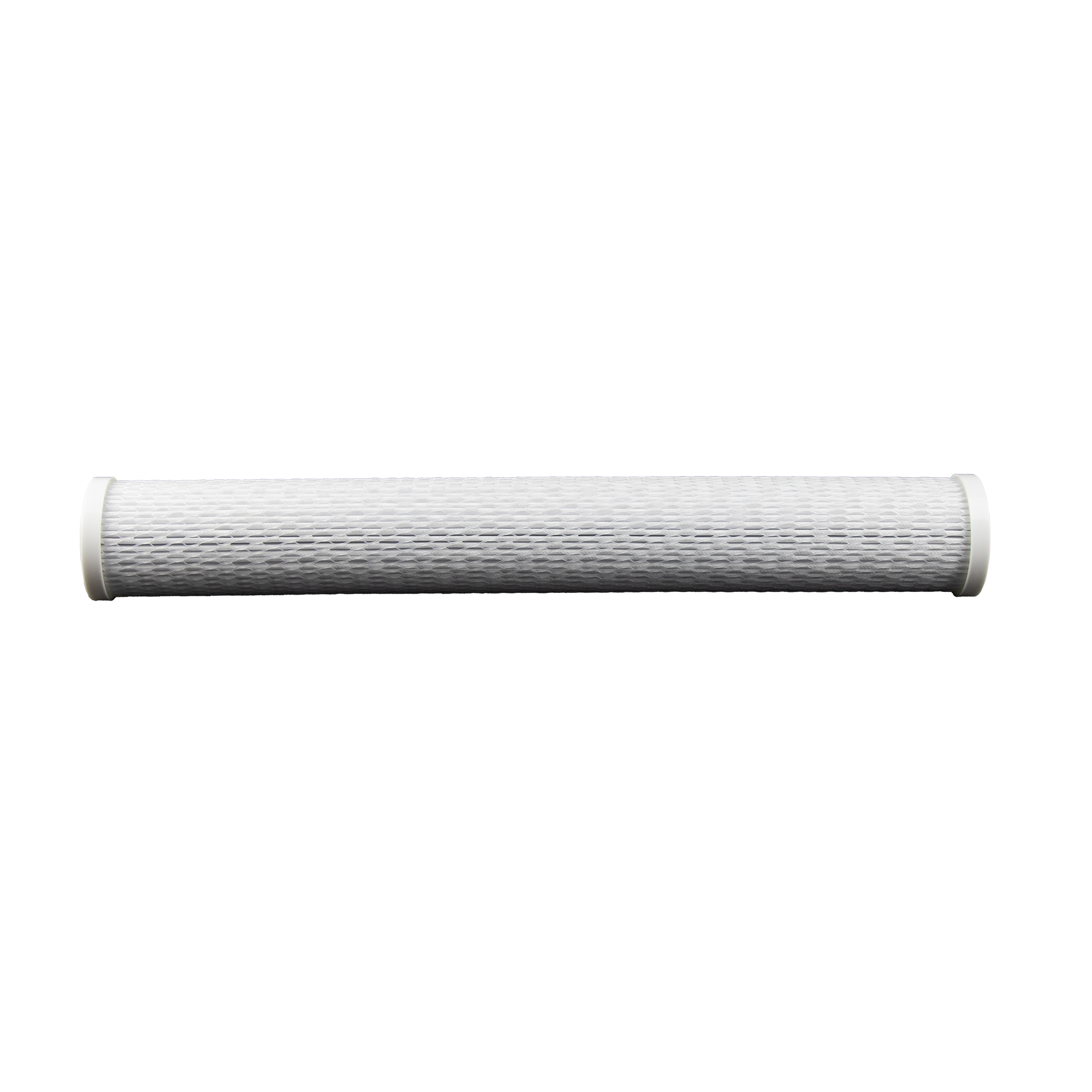

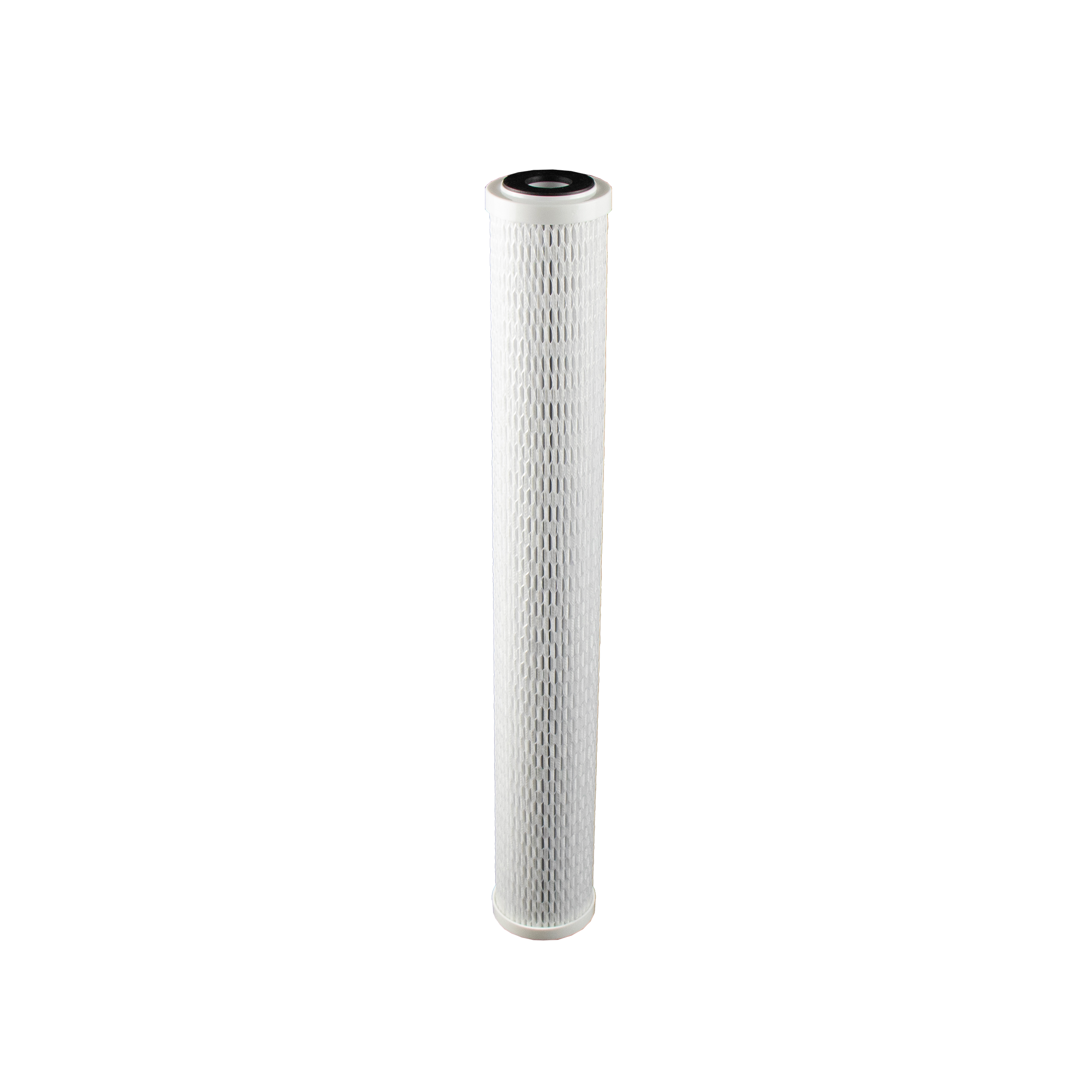

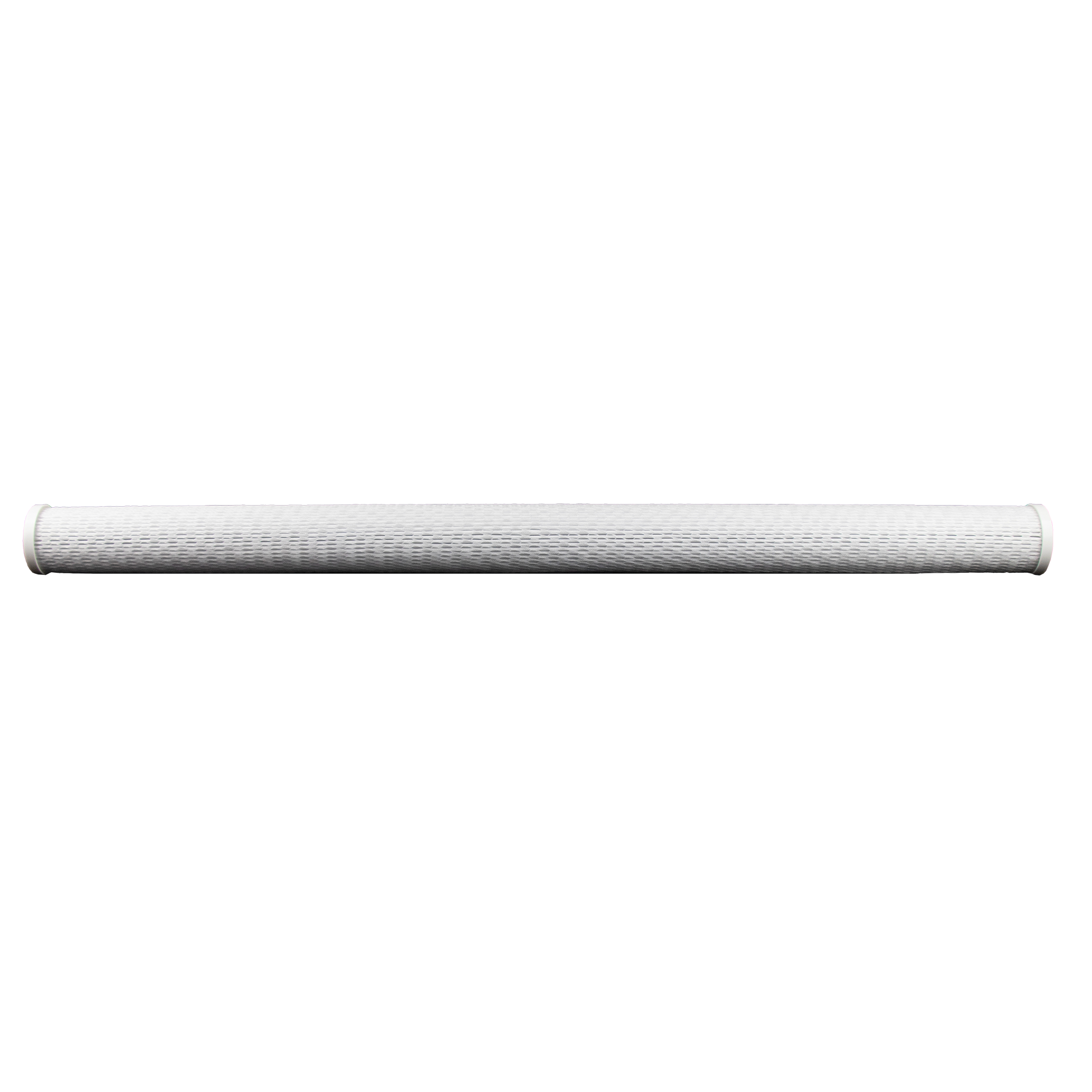

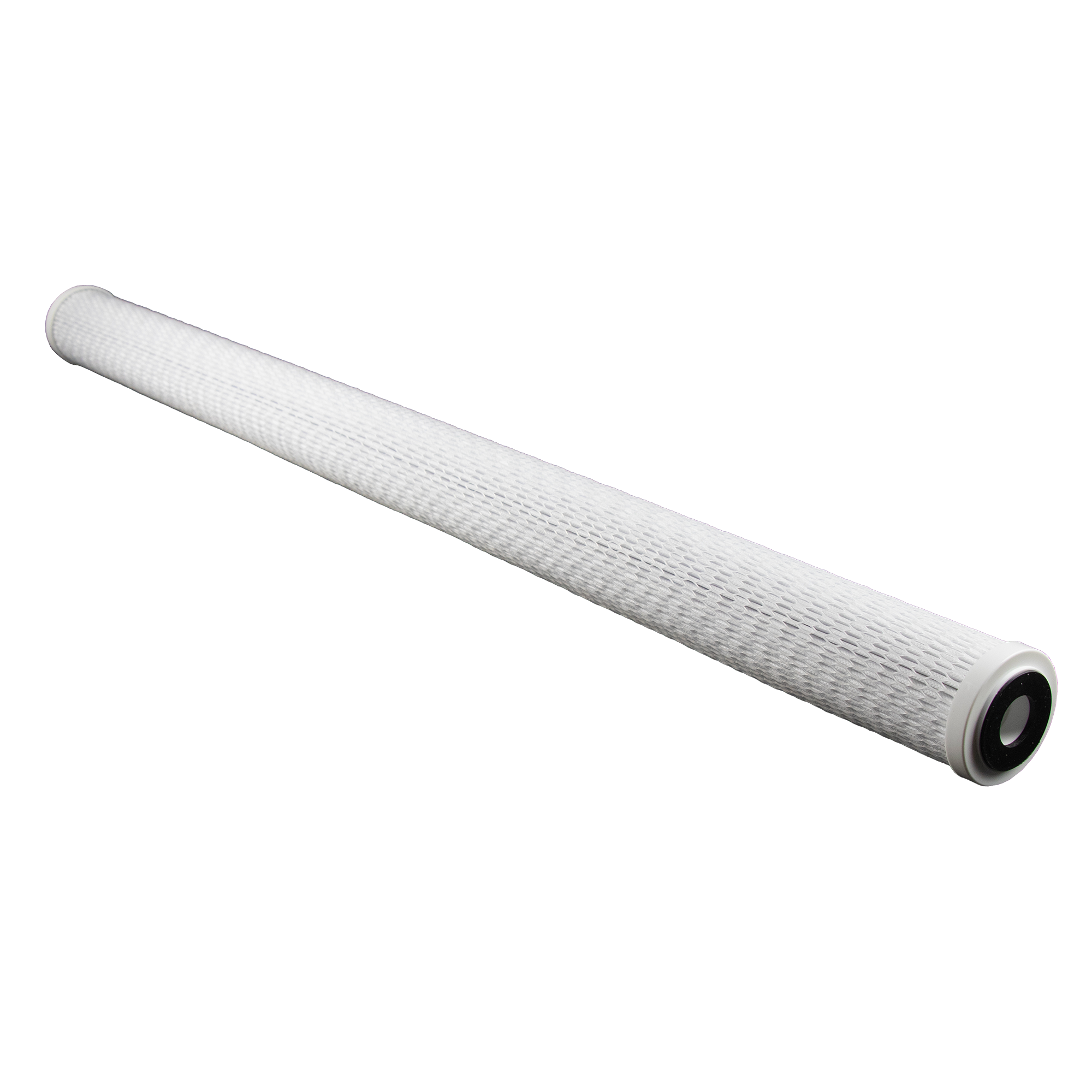

Standard Pleat Glass Fibre (SPG)
- Beta 5000 (efficiency 99.98%)
- Constructed with glass fibre for maximum removal performance, strength and stability
- Large filtration and multi-layer pleat construction provide a long life time
- Fully thermal welded without glues or adhesives
- Low cost due to large filtration area and low frequency of change out
- Oil Industry
- Beverage
- Inks
Features & Information
This Standard Pleat Glass Fibre cartridge combines advanced three-layer pleated technology with a lightweight, compact design, offering exceptional filtration performance, extended service life, and easy installation. Its high flow rates, reduced pressure drops, and durable construction ensures quick and efficient maintenance.
FAQs - SPG
It’s important to note that absolute rated filtration is distinct from nominal rated filtration in that absolute rated filters are designed to reliably capture particles of a specific size or larger, ensuring that no particles larger than the rated size will pass through the filter, whereas nominal filter ratings are more approximate and can allow some variability in particle size capture.
Borosilicate glass fibre is a type of fibreglass made from borosilicate glass, which is a specialised type of glass known for its high resistance to heat, chemicals, and thermal shock.
A pleated filter is a type of liquid filtration cartridge designed with pleats or folds on the filter media to increase the surface area for better filtration efficiency compared to spuns and wounds.
Pleated filters are used to remove suspended particulate. They are usually used to control finer particulate as a final stage of filtration where a specific contaminant is targeted for removal.
